SHSInspect 1Xpass module

Module for fast inline wavefront measurement of lenses and optical elements, suitable for integration in production lines

Benefits

  • Flexible integration into production lines
  • Fast measurement of transmitted wavefront and refractive power
  • Integrated high-resolution control camera
  • High-performance data interface

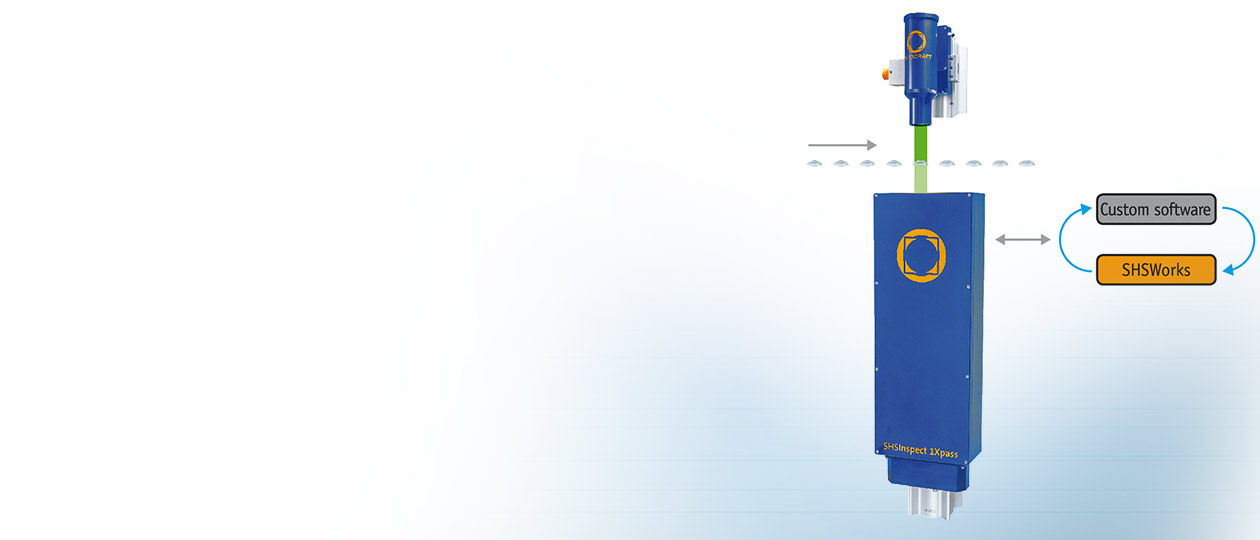

The SHSInspect 1Xpass module measures the imaging properties and refractive data of individual lenses and objectives in a single pass. It can be flexibly integrated into production lines and enables cycle times of less than a second from one lens to the next.

The module uses a Shack-Hartmann wavefront sensor to measure the refractive data and a high-resolution imaging camera to determine the lens position and diameter. In less than 250 milliseconds, optimized algorithms for image processing and wavefront reconstruction deliver reliable results for pass/fail classification. Owing to the individual image-based measurement method, the SHSInspect 1Xpass module is insensitive to vibrations.

  • Schnelle Inline-Prüfung
  • Flexible Integration in Produktionslinien und Anlagen
  • Robuste Messung mit hoher intrinsischer Stabilität
  • Testing of optical windows
  • Inspection of filters

Besides the Shack-Hartmann wavefront sensor, the SHSInspect 1Xpass module includes a vision control camera for high-resolution images of the test piece.

We are happy to provide a detailed specification upon request.

The SHSInspect 1Xpass module uses the powerful Shack-Hartmann software SHSWorks with functions for Zernike analysis, calculation of refractive data, etc. It also offers high-performance interfaces for easy integration of the module into main measurement processes. An SDK is also available for more complex routines.
